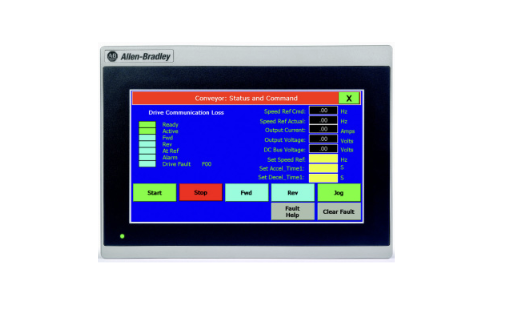

7-inch HMI Terminal
Display:
7‑inch color transmissive TFT LCD, widescreen format
Resolution: 800 × 480 (WVGA), 65 K colors
LED backlight with ≥ 40 000 hours lifespan
Touch Input:
Resistive analog touchscreen rated for ~1 million actuations
CPU & Memory:
800 MHz CPU
256 MB flash (ROM) + 256 MB DDR RAM
Storage Expansion:
USB 2.0 host port & micro‑SD slot
Supports SDSC & SDHC (Class 6/10) up to 32 GB
Communication Ports:
1 × Ethernet (10/100 Mbps)
1 × RS‑232; 1 × RS‑422/RS‑485
1 × USB host
Power & Consumption:
18–32 VDC input (nominal 24 V)
Max power ~11 W (0.40 A @ 24 V), heat dissipation ~34 BTU/hr
Environmental Ratings:
Operating temperature: 0–50 °C; non-operating: –25–70 °C
Relative humidity: 5–95% non-condensing
Vibration: 2 g @ 10–500 Hz; Shock: 15 g operating, 30 g non-operating
Enclosure & Certifications:
Front bezel: IP65, NEMA Type 4X/12/13
UL (cULus), CE, RCM, KC; UL Class I Div 2 – Groups A–D
Dimensions & Weight:
Unit: ~197 × 144 × 54 mm (7.8 × 5.7 × 2.1 in)
Cut-out: ~179 × 125 mm
Weight: ~0.65 kg (1.44 lb)
