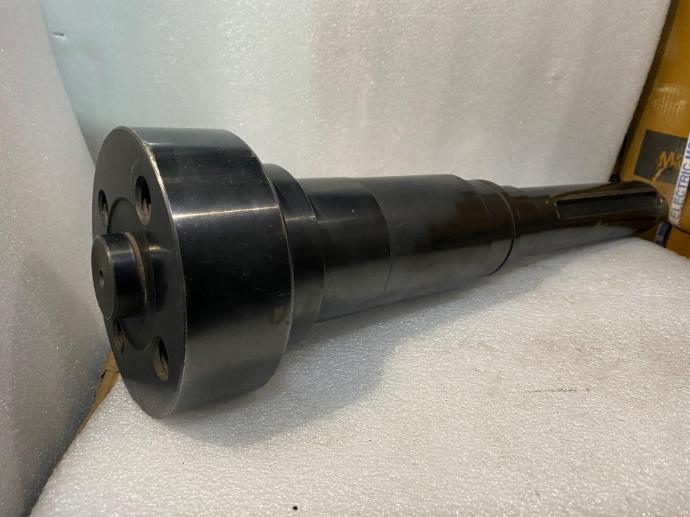

A spiral shaft is a mechanical component used to rotate a spiral element, typically for conveying or moving materials. It is made from EN19 material for high strength and durability.
| Spiral Shaft Specification Chart | |
| Parameter | Specification |
| Part Code | CSA-DS-30068-02-002 |
| Component Name | Spiral Shaft |
| Application | Spiral Dough mixer |
| Material | EN-19 |
| Shaft Diameter | Ø120 mm |
| Overall Length | 493 mm |
| Surface Finish | Polished (Ra ≤ 0.8 µm) |
| Straightness Tolerance | ≤ 0.05 mm per 300 mm |
