Festo 9261 / SGS-M10x1.25 Rod Eye
Festo 9261 / SGS-M10X1,25 Rod Eye
| Brand: Festo |
Festo
Festo is a German automation company based in Esslingen am Neckar, Germany. Festo produces and sells pneumatic and electrical control systems and drive technology for factories and process automation.

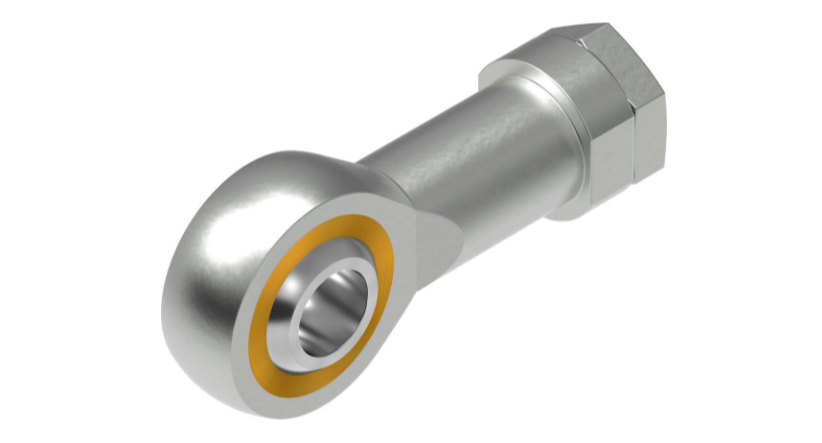

Rod Eye is a Piston Rod Attachment.
The swivel bearing of the rod eyes are maintenance free.
| Model | 9261 / SGS-M10X1.25 |
| Size | M10x1.25 |
| Corrosion resistance class CRC | 1 - Low corrosion stress |
| Ambient temperature | -40 °C ... 150 °C |
| Product weight | 88 g |
| Note on material | RoHS-compliant |
| Material of outer ring | Brass |
| Material housing | Galvanised steel |
| Material of inner raceway | Steel |
| Material nut | Galvanised steel |
9261.pdf
Download
