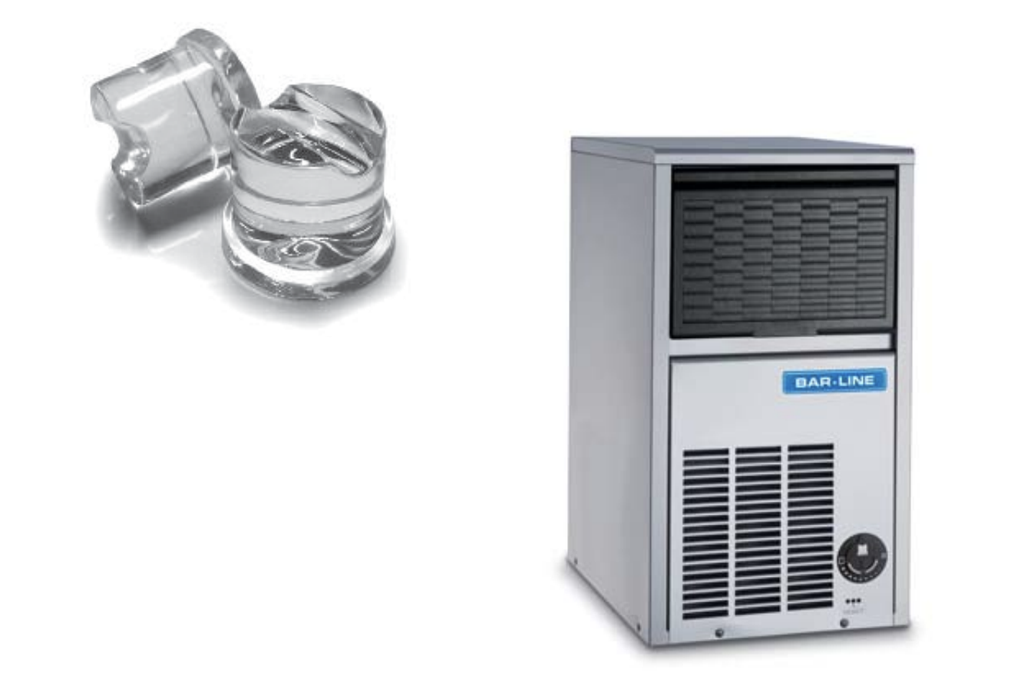

Scotsman B-2006 is a compact, self-contained ice cube machine designed for commercial environments such as bars, cafés, and small restaurants. It produces high-quality, cone-shaped ice cubes and is part of Scotsman's Bar Line series.
Features
Enhanced Water Distribution System: Ensures optimal coverage of the evaporator surface, leading to efficient ice production.
Electromechanical Controls: Simplifies operation and maintenance, enhancing reliability over the machine's lifespan.
Front Panel Thermostatic Controls: Allows easy adjustment of ice cube size and monitoring of the storage bin's ice level.
Compact Design: Optimized dimensions make it suitable for installation under bar counters or in areas with limited space.
Smooth Bin-Door Operation: Equipped with slide rollers and shock absorbers for quiet and effortless opening and closing.
Flexible Utility Connections: Utilities can be connected through side or base panel openings, facilitating versatile installation options.
Key Specifications
Ice Production Capacity: Up to 20 kg per 24 hours
Storage Bin Capacity: 6 kg
Cooling System: Available in both air-cooled (AS) and water-cooled (WS) models
Power Supply: 230V / 50Hz / Single-phase
Refrigerant: R134a
Water Consumption:
Air-cooled model: Approximately 3 liters per hour
Water-cooled model: Approximately 17 liters per hour
Energy Consumption:
Air-cooled model: Approximately 7 kWh per 24 hours
Water-cooled model: Approximately 5 kWh per 24 hours
Dimensions: Width: 333 mm | Depth: 457 mm | Height: 599 mm (with legs)
Net Weight: 28 kg
Gross Weight: 33 kg
