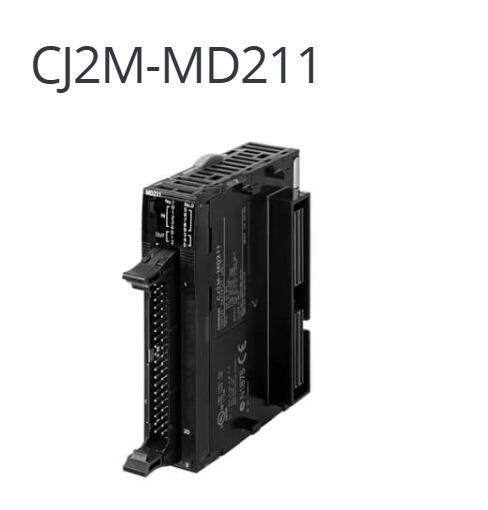

OMRON CJ2M-MD211 — Product Specification
| Specification | Details |
|---|---|
| Manufacturer | OMRON |
| Series | CJ2M |
| Model | CJ2M-MD211 |
| Module type | Pulse I/O Module |
| I/O system | CJ CPU Bus |
| Output type | NPN / Sinking |
| Inputs | 10 inputs |
| Outputs | 6 outputs |
| Interrupt / quick-response inputs | 4 |
| High-speed counter inputs | 2 |
| Pulse outputs | 2 |
| PWM outputs | 2 |
| Encoder input channels | 2 |
| Connector | 40-pin MIL connector |
| Communication ports | None |
| Supply voltage for I/O | 5–24 VDC |
| Allowable voltage range | 4.75–26.4 VDC |
| Maximum standard output current | 0.3 A/output, 1.8 A/unit |
| Pulse output frequency | Up to 100 kHz |
| Pulse output current | 7–30 mA |
| PWM maximum frequency | 32.8 kHz |
| PWM output capacity | 300 mA up to 6.5535 kHz; 100 mA from 6.5535–32.8 kHz |
| ON response time | 0.1 ms max. |
| OFF response time | 0.1 ms max. |
| External output supply | 10.2–26.4 VDC, 20 mA min. |
| Current consumption | 0.08 A at 5 VDC |
| Dimensions (H × W × D) | 90 × 20 × 66.3 mm |
| Weight | Approx. 70 g |
