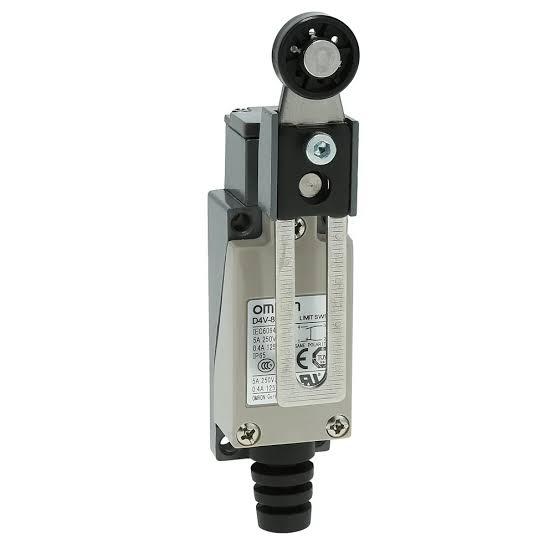

Product Details
| Parameter | Specification |
|---|---|
| Brand | OMRON |
| Model | D4V-8104Z |
| Series | D4V |
| Product | Small Limit Switch |
| Actuator | Roller Lever |
| Circuit | SPDT |
| Contact Rating | 5 A |
| Rated Voltage | 250 VAC / 125 VDC |
| Protection | IP65 |
| Termination | Screw Terminal |
| Mounting | Chassis / Screw Mount |
| Operating Force (OF) | Max. 5.88 N |
| Release Force (RF) | Min. 0.49 N |
| Pretravel (PT) | Max. 20° |
| Overtravel (OT) | Min. 75° |
| Movement Differential (MD) | Max. 10° |
| Total Travel (TT) | Min. 95° |
| Mechanical Life | Min. 10 million operations |
| Electrical Life | Min. 300,000 operations |
| Operating Speed | 5 mm/s to 0.5 m/s |
| Operating Temperature | -20°C to +60°C |
| Insulation Resistance | Min. 100 MΩ |
| Contact Resistance | Max. 25 mΩ initial |
| Rated Insulation Voltage | 250 V |
| Pollution Degree | 3 |
