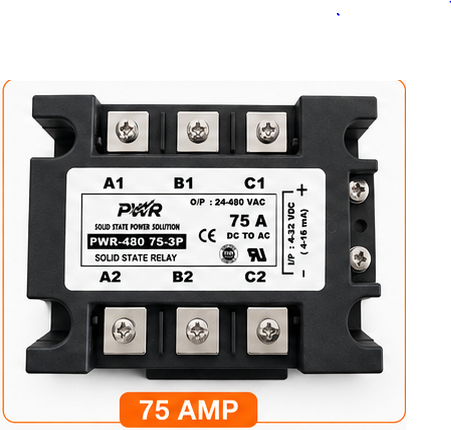

PWR-DC to AC 480-75-3P Three-Phase SSR 75 Amp (Solid State Relay)
| Parameter | Specification |
|---|---|
| Product Name | PWR-DC to AC Three-Phase Solid State Relay (SSR) |
| Model | PWR-480-75-3P |
| Type | Three-Phase Solid State Relay |
| Input Control (I/P) | 4–32 VDC (4–16 mA) |
| Output Voltage (O/P) | 24–480 VAC |
| Rated Load Current | 75 Amp |
| Output Type | Three-Phase AC Output |
| Switching Element | SCR (Silicon Controlled Rectifier) |
| Control Method | DC Control Input |
| Operating Frequency | 50/60 Hz |
| Input to Output Isolation | Optical Isolation |
| Dielectric Strength | ≥2500 VAC |
| Response Time | ≤10 ms |
| Mounting Type | Panel Mount |
| Cooling | External Heat Sink Required |
| Housing Material | Flame-Retardant Engineering Plastic |
| Operating Temperature | -30°C to +80°C |
| Available Current Ratings | 16A, 25A, 40A, 50A, 75A, 90A, 100A |
| Applications | Industrial Automation, Electric Heaters, Ovens, Temperature Controllers, Packaging Machines, Bakery Equipment, Plastic Processing Machines, Industrial Furnaces, Motor Control, and Process Control Systems |
