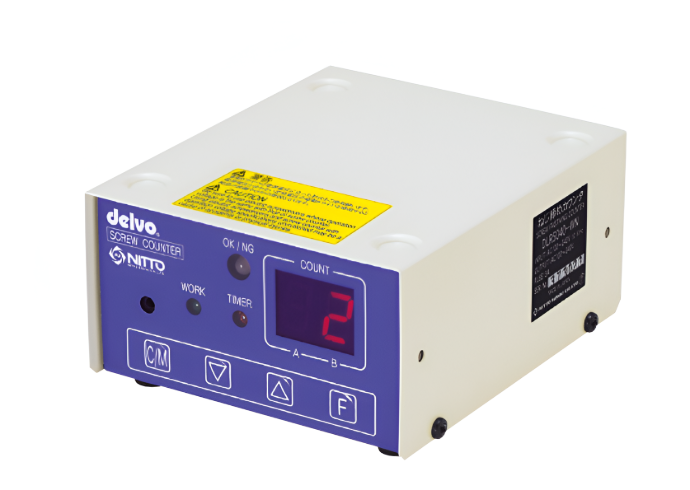

delvo DLR5040A-WE Screw Fastening Counter (Non-CE)
| Feature | Details |
|---|---|
| Model | DLR5040A-WE |
| Count Range | 1 - 99 |
| Counting Method | Count-up / Count-down |
| Count Correction Function | Count normal fastening only |
| Self Adjustable Timer Setting | 0.01 to 9.99 sec |
| Work Detection Function | Yes (1 terminal) / No |
| External Count Input | 2 terminals (PARTS A / PARTS B) |
| Work Installation Timer | 0 to 9.5 sec |
| OK Output Timer Setting | 0 to 9.5 sec |
| NG Alarm | ON(1) / ON(2) / OFF |
| OK Buzzer | ON(1) / ON(2) / ON(3) / OFF |
| Count Return Function | ON / OFF |
| NG Judge Timing | WORK SET / DRIVER ON |
| Automatic / Manual OK Judge | AUTO / MANUAL |
| Screwdriver Lock Function | ON / OFF |
| Multiple Link | Up to 10 counters can be connected |
| External Inputs on Terminal Block | SENSOR / RESET / LINK-IN / PARTS A / PARTS B |
| External Outputs on Terminal Block | OK / NG / LINK-OUT |
| Parameter Memory | Stored in internal nonvolatile memory |
| Input Voltage | 100 - 240 V AC, 50/60 Hz |
| External Dimensions | W100 × D120 × H60 mm (W3.94” × D4.72” × H2.36”) |
| Mass | 470 g (1.04 lbs) |
Key Features
-
Prevents human fastening errors
-
Count return & correction functions
-
Driver lock and multiple link functions
-
Suitable for transformerless screwdrivers
-
Compact and 38% lighter than previous models
