| Parameter | Specification |
|---|---|
| Motor Type | 3-Phase AC Induction Motor with Electromagnetic Brake |
| Output Power | 2 HP (1.50 kW) |
| Rated Speed | 940 RPM |
| Frame Size | NG90L |
| Rated Voltage | 415 V AC (±10%) |
| Frequency | 50 Hz |
| Number of Phases | 3 Phase |
| Number of Poles | 6 Pole |
| Mounting Type | B3 Foot Mounted |
| Enclosure | TEFC (Totally Enclosed Fan Cooled) |
| Protection Class | IP55 |
| Insulation Class | Class F |
| Duty | S1 (Continuous Duty) |
| Efficiency Class | IE2 / IE3 (Depending on Manufacturer) |
| Brake Type | Electromagnetic Brake |
| Quantity | 1 No. |
Description:

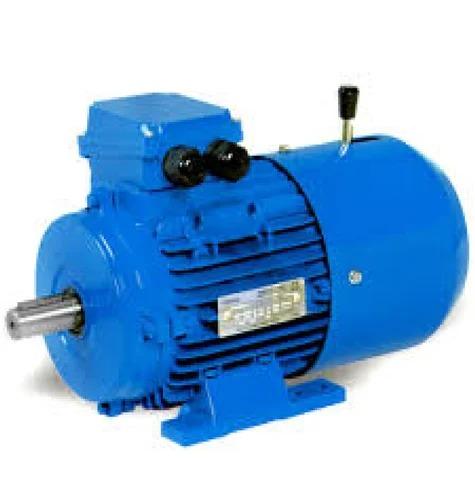

2 HP (1.5 kW), NG90L frame, 6-pole, 940 RPM, 415 V, 3-phase AC induction motor with electromagnetic brake. The motor shall be TEFC, IP55 protected, Class F insulation, and suitable for S1 continuous duty operation as per IEC standards.
