Product Details
| Parameter | Specification |
|---|---|
| Product Name | Oil Tight Limit Switch with Adjustable Roller Lever |
| Model | BC-9 |
| Type | JLSLA |
| Contact Configuration | 1NO + 1NC |
| Rated Voltage | 415 V AC |
| Frequency | 50 Hz |
| Rated Current | 1.5 A |
| Utilization Category | AC15 / DC13 |
| Protection Class | IP67 |
| Actuator Type | Adjustable Roller Lever |
| Enclosure Type | Oil Tight / Dust Proof |
| Mounting | Industrial Machine Mounting |
| Operating Mechanism | Snap Action Type |
| Application | Hoist Limit Control |
| Used In | 30 Ton Hoist |
| Make | Jaibalaji Control Gears Pvt. Ltd. |
Product Features
- Heavy-duty industrial limit switch
- Oil tight and dustproof construction
- Adjustable roller lever for flexible operation
- High durability suitable for hoist applications
- Reliable snap action switching mechanism
- Suitable for harsh industrial environments
Applications
- EOT Cranes
- Hoists
- Material Handling Equipment
- Industrial Automation Systems
- Motion & Position Control Applications
Technical Description

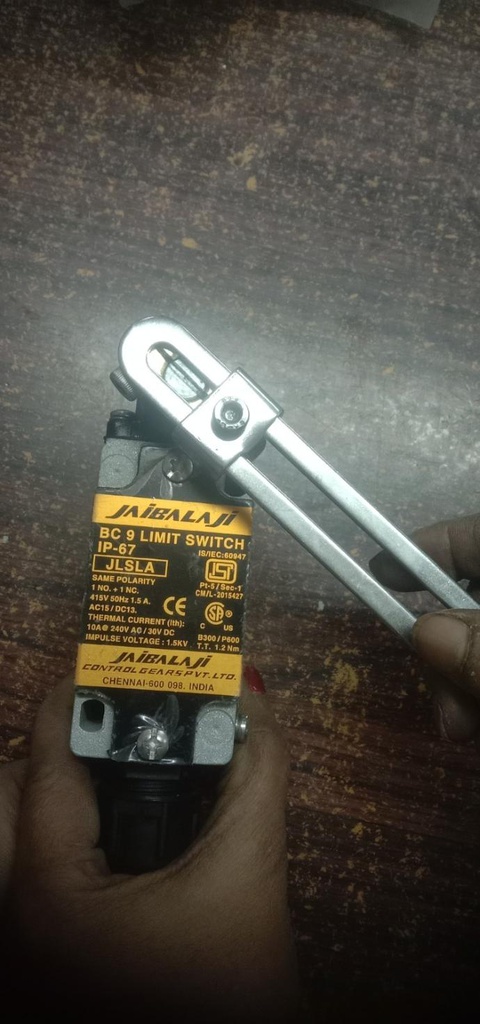

Jaibalaji BC-9 series oil tight limit switch is designed for precise motion control and safety interlocking applications in hoists and industrial machinery. The IP67 protection ensures reliable performance in dusty and oily environments. The adjustable roller lever enables flexible mounting and accurate actuation during operation.
