| Specification | Details |
|---|---|

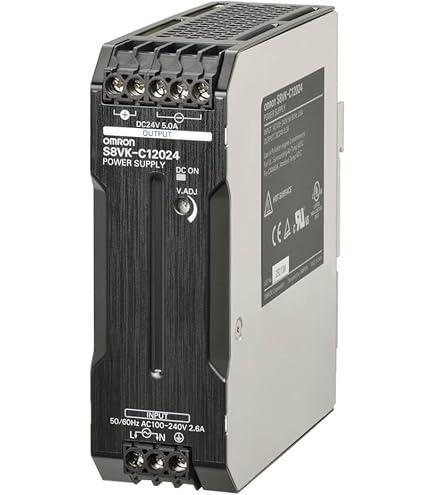

| Brand | OMRON |
| Model / Part No. | S8VK-C12024 |
| Product type | Switch Mode Power Supply (SMPS) |
| Series | S8VK-C |
| Rated power | 120 W |
| Input voltage | 100–240 VAC |
| Input frequency | 50/60 Hz |
| Input current | 2.6 A (as shown on your nameplate) |
| DC input range | 90–350 VDC |
| Output voltage | 24 VDC |
| Output current | 5 A |
| Output | Single output |
| Mounting | DIN Rail |
| Phase | Single phase |
| Terminal | Screw terminal |
| Cooling | Natural air cooling / gravity |
| Operating temperature | -25 to +60°C |
| Efficiency | Approx. 88–89% |
| Protection | Overload & overvoltage protection |
| Protection degree | IP20 |
| Dimensions | Approx. 40 × 125 × 113 mm (W × H × D) |
| Weight | Approx. 580 g |
| Manufacturer | OMRON |
| Manufacturing location on nameplate | China |
