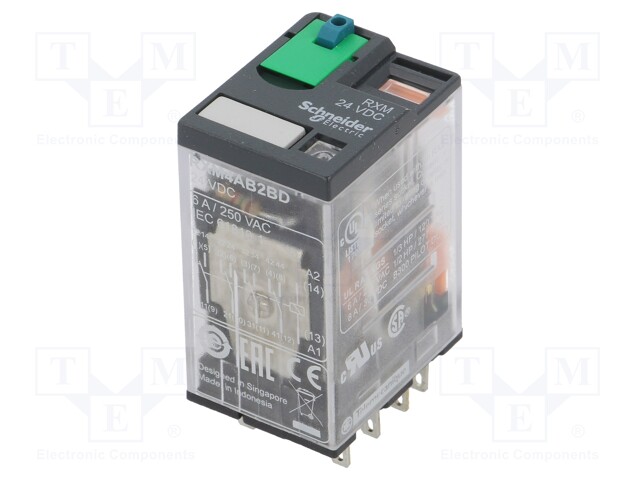

Schneider RXM4AB2BD  Relay Coil
(0 review)

Relay coil 24VDC

₹ 333.00 333.0 INR ₹ 370.00

₹ 370.00

    RXM miniature relays are part of Harmony Electromechanical Relays. This is a plug in relay to be mounted on a RXZE socket. It is a 4 C/O relay with current rating of 6A, control circuit voltage of 24 V DC. It also offers one-step loackable test button and mechanical indicator for contact status. The testbutton is activated momentarily by pushing the blue pushbutton on the front and locked by flipping up the green part. The mechanical indicator is next to the testbutton, where an orange flag indicates the relay contact status. A green LED on the front will illuminate when the relay is on. Status display with LED: clearly signal both in the day and night. Its design is fit for industrial machines, packaging, textile, HVAC, automation control panels, low/medium voltage switchgear, motor controls, PLC Interfaces, power supplies, building or medical equipment, lighting controls. It is a green premium product and conforms to international standard and certifications like IEC, CE, UL, CSA, EAC, Lloyd's, RoHS and REACH. RXM Relay should be used with a RXZE socket (screw clamp, screw connector, push-in terminal). To protect against vibrations, plastic/metal clamp can be added to the socket. Protection modules and marking legend are also available. It is sold in lots of 10 and reference includes relay only. The RXM plug-in relays are a series of industrial plug-in relays designed for both simple and complex automation systems and available with 2 CO (12A), 3 CO (10A), 4 CO (6A) contacts, 4 CO (3A) low level contacts.


    Range of productHarmony Electromechanical Relays
    Series nameMiniature
    Product or component typePlug-in relay
    Device short nameRXM
    Contacts type and composition4 C/O
    [Uc] control circuit voltage24 V DC
    Status LEDWith
    Control typeLockable test button
    utilisation coefficient20 %
    Shape of pinFlat
    [Ui] rated insulation voltage250 V conforming to IEC
    300 V conforming to CSA
    300 V conforming to UL
    [Uimp] rated impulse withstand voltage2.5 kV during 1.2/50 µs
    Contacts materialAgNi
    [Ie] rated operational current3 A at 28 V (DC) NC conforming to IEC
    3 A at 250 V (AC) NC conforming to IEC
    6 A at 28 V (DC) NO conforming to IEC
    6 A at 250 V (AC) NO conforming to IEC
    6 A at 277 V (AC) conforming to UL
    8 A at 30 V (DC) conforming to UL
    Continuous output current5 A
    Maximum switching voltage250 V conforming to IEC
    resistive rated load6 A at 250 V AC
    6 A at 28 V DC
    Maximum switching capacity1500 VA/168 W
    Minimum switching capacity170 mW at 10 mA, 17 V
    Operating rate<= 1200 cycles/hour under load
    <= 18000 cycles/hour no-load
    Mechanical durability10000000 cycles
    Electrical durability100000 cycles for resistive load
    average coil consumption0.9 W
    Drop-out voltage threshold>= 0.1 Uc
    operate time20 ms
    release time20 ms
    average coil resistance650 Ohm at 20 °C +/- 10 %
    Rated operational voltage limits19.2...26.4 V DC
    Safety reliability dataB10d = 100000
    Protection categoryRT I
    Test levelsLevel A group mounting
    operating positionAny position
    CAD overall height82.8 mm
    CAD overall depth80.35 mm
    Net weight0.037 kg
    device presentationComplete product
    Dielectric strength1300 V AC between contacts with micro disconnection
    2000 V AC between coil and contact with basic insulation
    2000 V AC between poles with basic insulation
    Product certificationsUL
    StandardsEN/IEC 61810-1
    UL 508
    CSA C22.2 No 14
    Ambient air temperature for storage-40…85 °C
    Ambient air temperature for operation-40…55 °C
    Vibration resistance3 gn, amplitude = +/- 1 mm (f = 10…150 Hz)5 cycles in operation
    5 gn, amplitude = +/- 1 mm (f = 10…150 Hz)5 cycles not operating
    IP degree of protectionIP40 conforming to EN/IEC 60529
    Shock resistance10 gn for in operation
    30 gn for not operating
    Pollution degree2
    Packing Units
    Unit Type of Package 1Db
    Number of Units in Package 11
    Package 1 Height2.0 cm
    Package 1 Width2.8 cm
    Package 1 Length4.8 cm
    Package 1 Weight36.0 g
    Unit Type of Package 2Gyári csomagolás
    Number of Units in Package 210
    Package 2 Height3.0 cm
    Package 2 Width10.0 cm
    Package 2 Length12.5 cm
    Package 2 Weight400.0 g
    Unit Type of Package 3S02
    Number of Units in Package 3240
    Package 3 Height15.0 cm
    Package 3 Width30.0 cm
    Package 3 Length40.0 cm
    Package 3 Weight10.109 kg
