FAG UCF 204 Flange Bearing
FAG UCFC 205-J7 Round Flange Bearing
Schaeffler Technologies AG & Co. KG, also known as Schaeffler Group, is a German manufacturer of rolling element bearings for automotive, aerospace and industrial uses. It was founded in 1946 by brothers Dr. Wilhelm and Dr.-Ing. E. h. Georg Schaeffler.

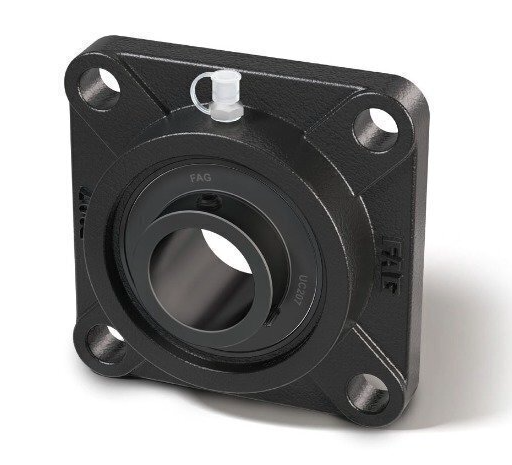

UCF204-FAGB 20mm 4 Bolt Flange Bearing - Black Series.
FAG black series are dimensionally interchangeable with Japanese brands such as Asahi / FYH and NTN.
The new radial insert ball bearing and housing units FAG Black Series from Schaeffler give easy mounting, smooth running and high reliability and thus allow particularly economical bearing arrangements.
The dimensions of the FAG housings, made from flake graphite cast iron and with a primer paint coating, conform to JIS B 1559 (Japanese Industrial Standard Dimensions).
These single piece cast housings can support moderate to high radial and axial loads. The radial insert ball bearings have basic protection against corrosion due to the Durotect BS coating.
The bearing units are particularly suitable for applications with moderate to high loads.
|Inner Dia||20 mm|
|Outer Dia||86 mm|
|Weight (kg)||0.559 Kg|
|Seal||Standard Seal for Y bearings|
