FAG UCFL 206 2-Bolt Flange Bearing

(0 review)

FAG UCFL 206 2-Bolt Flange Bearing

₹ 1,128.39 1128.39 INR ₹ 1,253.77

₹ 1,253.77

  • Brand

Brand: FAG

Brand: FAG

Schaeffler Technologies AG & Co. KG, also known as Schaeffler Group, is a German manufacturer of rolling element bearings for automotive, aerospace and industrial uses. It was founded in 1946 by brothers Dr. Wilhelm and Dr.-Ing. E. h. Georg Schaeffler.

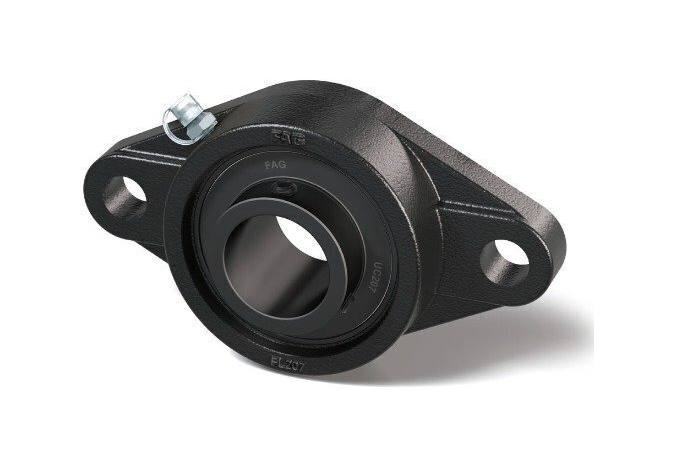

UCFL206-FAGB 30mm 2 Bolt Flange Bearing - Black Series

The FAG black series are dimensionally interchangeable with Japanese brands such as Asahi / FYH and NTN.

The new radial insert ball bearing and housing units FAG Black Series from Schaeffler give easy mounting, smooth running and high reliability and thus allow particularly economical bearing arrangements.

The dimensions of the FAG housings, made from flake graphite cast iron and with a primer paint coating, conform to JIS B 1559 (Japanese Industrial Standard Dimensions).

These single piece cast housings can support moderate to high radial and axial loads. The radial insert ball bearings have basic protection against corrosion due to the Durotect BS coating.

The bearing units are particularly suitable for applications with moderate to high loads.

Material Cast Iron
Width 148 mm
Mount Hole Size 16 mm
Inside Diameter 30 mm
Number of Mount Holes 2
Length 80 mm
Depth 40.2 mm
Mount Hole Centre to Centre 117 mm
