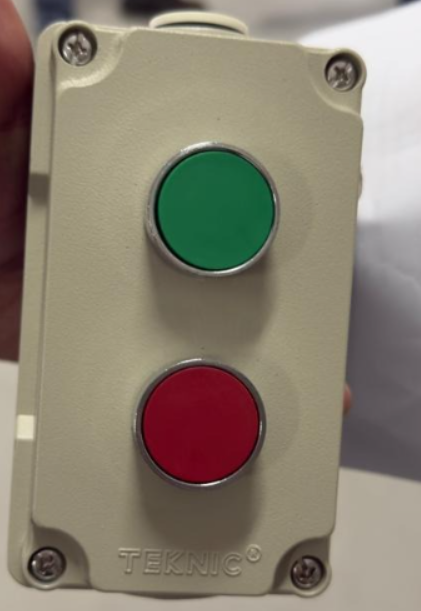

Teknic 2 Way Push Button Station (1 NO + 1 NC) – Specification Chart
| Parameter | Specification |
|---|---|
| Product Name | Teknic 2 Way Push Button Station |
| Brand | Teknic |
| Type | Push Button Control Station |
| Number of Buttons | 2 |
| Button Colors | Green (START) & Red (STOP) |
| Contact Configuration | 1 NO + 1 NC |
| Operation Type | Momentary Push Button |
| Mounting Type | Surface Mount |
| Enclosure Material | High-Grade Engineering Plastic |
| Enclosure Color | Grey |
| Protection Class | IP65 (Dust & Water Resistant) |
| Rated Insulation Voltage | 690V AC |
| Rated Operational Voltage | Up to 415V AC |
| Rated Current | 10A |
| Frequency | 50/60 Hz |
| Operating Temperature | -25°C to +55°C |
| Application | Motor Control, Industrial Machines, Control Panels, Conveyor Systems |
| Included Elements | 1 NO + 1 NC Contact Elements |
| Compliance | IEC Standards |
