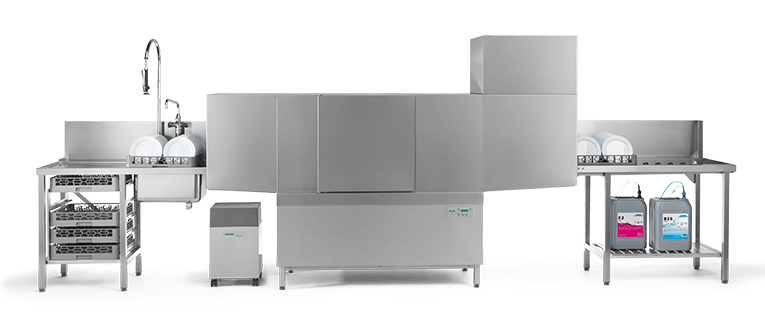

The Winterhalter C50 Single Rinse Rack Conveyor Dishwasher is ideal for commercial establishments such as restaurants, hotels, and catering services that require efficient and hygienic dishwashing in a compact space. Its modular design allows for customization to meet specific operational needs, and its high throughput ensures that large volumes of dishes can be cleaned quickly and effectively.
| Feature | Details |
|---|---|
| Model | Winterhalter C50 |
| Dimensions (L x W x H) | 1,300 x 800 x 1,420 mm |
| Rack Dimensions | 500 x 500 mm |
| Clear Entry Height | 450 mm |
| Tank Capacity | 95 liters |
| Tank Heating Power | 18 kW (upgradeable to 27 kW with HighTemp kit) |
| Rinse Water Temperature | 85°C |
| Wash Pump Power | 1.6 kW |
| Noise Emission | <70 dB(A) |
| Power Consumption | 47.7 – 56.6 kW |
| Electrical Connection | 380V / 3N~ / 50Hz |
| Weight (Net / Gross) | 200 kg / 250 kg |
| Performance | Up to 260 racks per hour (with optional modules) |
| Water Pressure Requirement | 1.5 – 6.0 bar (150 – 600 kPa) |
| Max. Inlet Water Temp. | 60°C |
| Construction | Stainless steel with double-skinned hygiene doors |
| Filtration System | Double filtration with pump inlet filter and flat strainer |
| Operating Interface | Language-neutral, color-coded display with self-explanatory pictograms |
