Schneider Electric A9N2P04C MCB Miniature Circuit Breaker

Price:

₹ 850.50

Indian Pricelist
Mechtrace by CS Bakery Solutions
Schneider Electric A9N3P10C MCB Miniature Circuit Breaker
Schneider Electric A9N3P10C MCB Miniature Circuit Breaker
₹ 906.17
₹ 1,006.86 (10% OFF)
Schneider Electric A9N3P06C MCB Miniature Circuit Breaker
Schneider Electric A9N3P06C MCB Miniature Circuit Breaker
₹ 906.17
₹ 1,006.86 (10% OFF)

Schneider Electric A9N2P04C MCB Miniature Circuit Breaker

https://www.mechtrace.com/web/image/product.template/643/image_1920?unique=de0f340
(0 review)

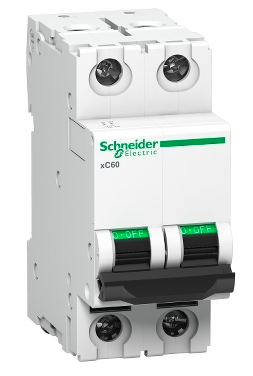

Schneider Electric A9N2P04C Miniature Circuit Breaker

₹ 850.50 850.5 INR ₹ 945.00

₹ 945.00


  • Brand

Brand: Schneider Electric SE

Brand: Schneider Electric SE
Schneider Electric SE

Schneider Electric SE is a European multinational company that specializes in digital automation and energy management. It addresses homes, buildings, data centres, infrastructure and industries, by combining energy technologies, real-time automation, software, and services.



This Acti9 xC60 is a multistandard low voltage biconnect miniature circuit breaker (MCB). It is a 2P circuit breaker with 2 protected poles and 4A In rated current and C tripping curve. The rated short circuit breaking capacity goes up to 10000 A at 415VAC conforming to EN/IEC 60898-1 standard and 10000A at 415VAC conforming to EN/IEC 60898-1 standard. It complies with both industrial standard EN/IEC 60898-1 and residential standard EN/IEC 60947-2. This miniature circuit breaker combines functions of circuit protection against short circuit and overload current, control and isolation. The presence of the green strip guarantees physical opening of the contacts. It allows operations to be performed on the downstream circuit in complete safety. Mechanical durability goes up to 20000 cycles and electrical durability goes up to 20000 cycles. The Ue operational voltage is going from 240VAC. The Ui rated insulation voltage is 500VAC. The Uimp rated impulse withstand voltage is 6kV. The operating frequency is 50Hz or 60Hz. It can be mounted on DIN rail for modular installation. Its width is 4 pitches of 9mm. Pollution degree is 3. The product colour is white (RAL9003). The dimensions are (W) 36mm x (H) 85mm x (D) 77.5mm. The weight is 0.215kg. According to IEC 60529 standard, the degree of protection is IP20 and IP40 in enclosure. The operating temperature is -30°C to 70°C. The storage temperature is -40°C to 85°C.


Device applicationDistributionRange of productActi9RangeActi9Product nameXC60Product or component typeMiniature circuit-breakerDevice short nameXC60Poles description2PNumber of protected poles2[In] rated current4 ANetwork typeAC
DCTrip unit technologyThermal-magneticCurve codeCUtilisation categoryCategory A conforming to EN/IEC 60947-2Suitability for isolationYes conforming to EN/IEC 60947-2


Network frequency50/60 Hz
[Ue] rated operational voltage240 V AC 50/60 Hz
380...415 V AC 50/60 Hz
100...125 V DC
Magnetic tripping limit8 x In +/- 20 %
Breaking capacity10000 A Icn at 240 V AC 50/60 Hz conforming to EN/IEC 60898-1
10000 A Icn at 415 V AC 50/60 Hz conforming to EN/IEC 60898-1
15 kA Icu at 380...415 V AC 50/60 Hz conforming to EN/IEC 60947-2
6 kA Icu at 100...125 V DC conforming to EN/IEC 60947-2
[Ics] rated service breaking capacity6 kA conforming to EN/IEC 60947-2 - 100...125 V DC
7.5 kA conforming to EN/IEC 60947-2 - 380...415 V AC 50/60 Hz
Limitation class3 conforming to EN/IEC 60898-1
3 conforming to EN/IEC 60947-2
[Ui] rated insulation voltage500 V AC 50/60 Hz conforming to EN/IEC 60947-2
[Uimp] rated impulse withstand voltage6 kV conforming to EN/IEC 60947-2
Contact position indicatorYes
control typeToggle
Local signallingON/OFF indication
Mounting modeClip-on
Mounting support35 mm DIN rail
Comb busbar and distribution block compatibilityTop: YES
9 mm pitches4
Height85 mm
Width36 mm
Depth77.5 mm
Net weight0.215 kg
ColourWhite
Mechanical durability20000 cycles
Electrical durability20000 cycles
Connections - terminalsTunnel type terminals (bottom) 16 mm² flexible
Tunnel type terminals (bottom) 25 mm² rigid
Biconnect (top)
Wire stripping length13 mm for top or bottom connection
Tightening torque2 N.m
Earth-leakage protectionSeparate block
Product compatibilityC60 auxiliary
C60 accessories
Environment

StandardsEN/IEC 60898-1
EN/IEC 60947-2IP degree of protectionIP20 conforming to IEC 60529Pollution degree3Tropicalisation2 conforming to IEC 60068-1Relative humidity95 % at 55 °CAmbient air temperature for operation-30…70 °CAmbient air temperature for storage-40…85 °C
