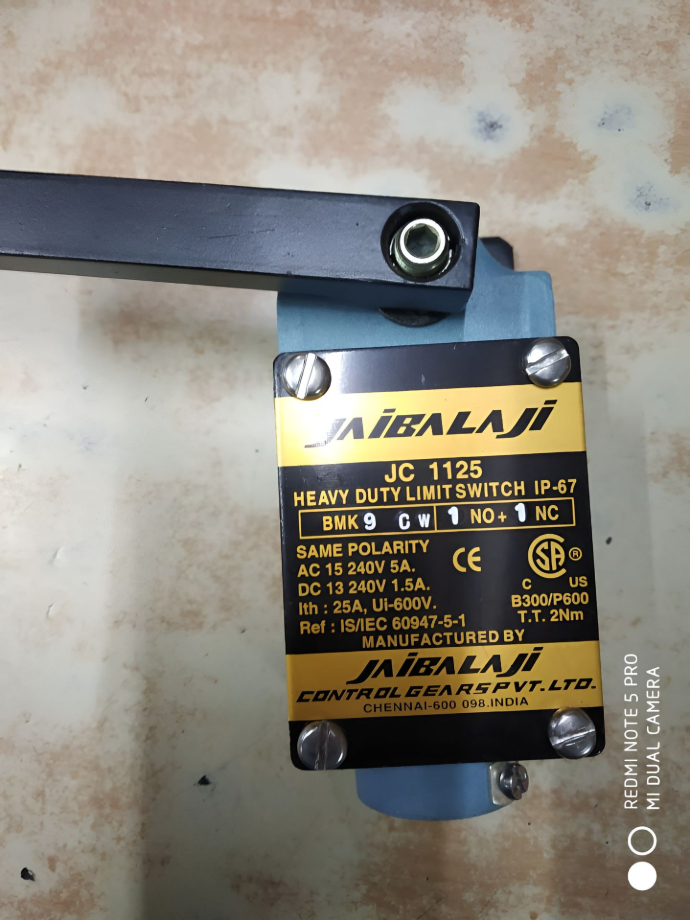

Product Name: Heavy Duty Limit Switch
Model: JC 1125
Make: Jai Balaji Control Gears Pvt. Ltd.
Code No.: BMK9A
Technical Specifications
Feature | Details |
---|---|
Type | Lever, Spring Return (Clockwise), Snap Action |
Actuator | 76 mm Lever, Spring-loaded |
Contact Configuration | 1 NO + 1 NC |
Rated Operating Voltage | AC-15: 240V 5A / DC-13: 240V 1.5A |
Rated Thermal Current | Ith = 25A |
Rated Insulation Voltage | Ui = 600V |
Ingress Protection | IP67 |
Mechanical Endurance | > 10 million operations |
Conformance | IS/IEC 60947-5-1 |
Torque Rating | 2 Nm |
Mounting Type | Surface Mount |
Body Material | Cast Iron |
Cable Entry Size | 19 mm |
Ambient Temperature | -20°C to 60°C |
