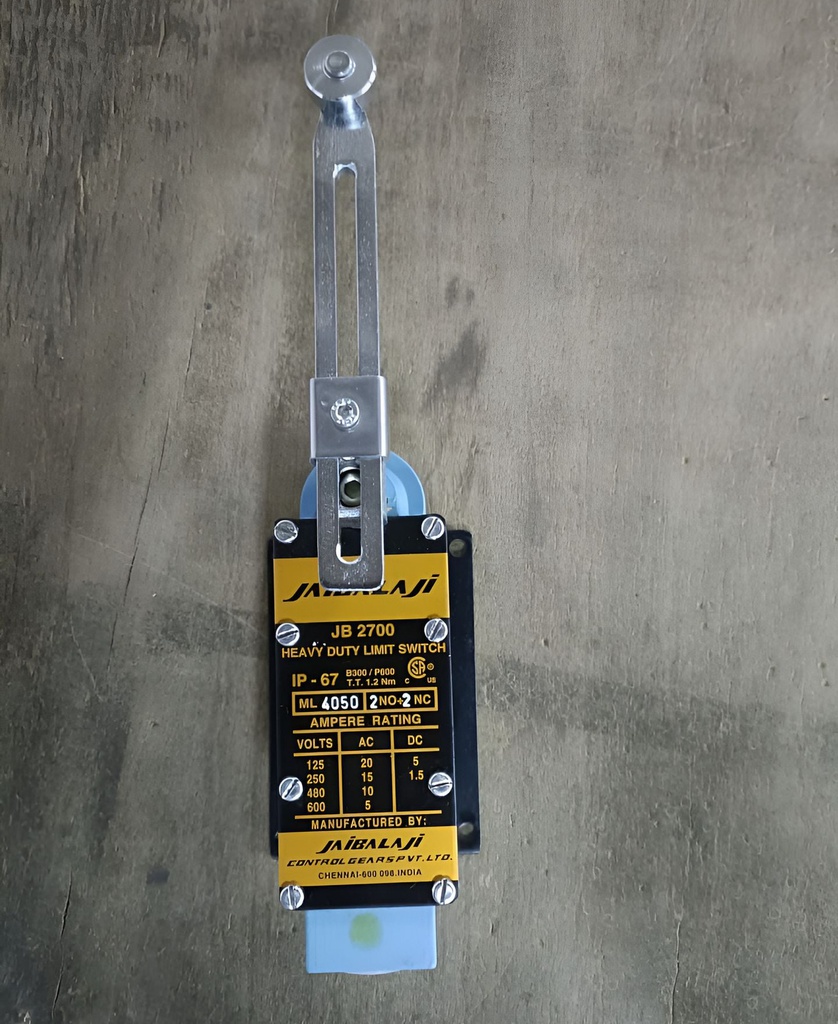

Jaibalaji JB 2700 (ML4050) Heavy Duty Limit Switch
Product Description
The JB 2700 (ML4050) from Jaibalaji is a robust heavy-duty limit switch designed for industrial applications requiring high durability and precision. With IP67 ingress protection, cast aluminium body, and wide temperature tolerance, it ensures reliable performance in demanding environments.
Technical Specifications
| Feature | Details |
|---|---|
| Part Name | Limit Switch |
| Model | JB 2700 (Type: ML4050) |
| Make | Jaibalaji |
| Voltage Rating | 230V |
| Contact Configuration | 2NO + 2NC |
| Contact Rating | 5A |
| Terminal Type | Screw Terminal |
| Cable Entry | 1 Inch |
| Ambient Temperature | -20°C to +120°C |
| Ingress Protection | IP67 |
| Mounting Type | Plate Mounting |
| Housing Material | Cast Aluminium |
| Actuator Type | Adjustable Lever |
| Accessories Included | Mounting Bolt & Nut |
