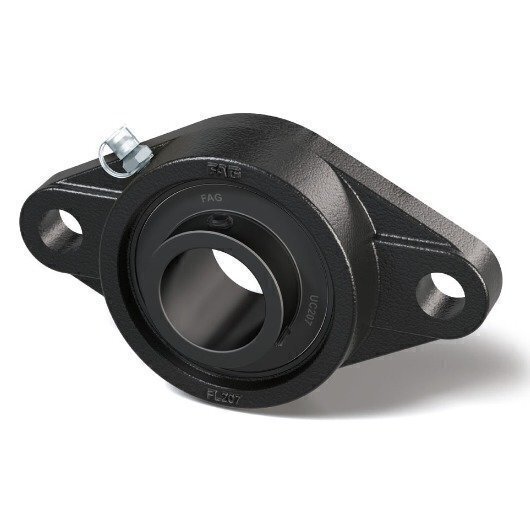

FAG UCFL 210 Ball bearing

(2 reviews)

UCFL 210 Ball bearing

₹ 3,451.95 3451.9500000000003 INR ₹ 3,835.50

₹ 3,835.50

  • Brand

Brand: SKF

Brand: SKF

AB SKF (Swedish: Svenska Kullagerfabriken, 'Swedish Ball Bearing Factory') is a Swedish bearing and seal manufacturing company founded in Gothenburg, Sweden, in 1907. The company manufactures and supplies bearings, seals, lubrication and lubrication systems, maintenance products, mechatronics products, power transmission products, condition monitoring systems and related services globally.[2]

These oval flanged ball bearing units are compliant with JIS standards. They consist of an insert bearing, with an extended inner ring and set screw locking, and are suitable for applications where the direction of rotation is constant or alternating. The bearing is mounted in a cast iron housing, which can be bolted to a machine wall or frame. Ball bearing units can accommodate moderate initial misalignment, but normally do not permit axial displacement.

Resist high levels of contamination

Designed for high temperatures and speeds

Accommodate relatively heavy loads


d 50 mm Bore diameter
d1 ≈62.1 mm Outer diameter of inner ring
A 39 mm Overall width
A1 15 mm Flange width
A5 33 mm Width including end cover
B 51.6 mm Width of inner ring
B4 9.5 mm Distance from locking device side face to thread centre
Db1 115 mm Top external diameter
H 197 mm Overall height
J 157 mm Distance between attachment bolts
L 115 mm Overall length
N 19 mm Diameter of attachment bolt hole
s1 32.6 mm Distance from locking device side face to raceway centre
T 54.6 mm Overall unit width
RG 1/8-27 NPT Housing thread for grease fitting
R1 25 mm Axial position of the housing thread
45 ° Angular position of the housing thread
DN 6.589 mm Diameter of head sphere of grease fitting
SWN 11.11 mm Hexagonal key size for the grease fitting
GN 1/8-27 NPT Thread of grease fitting
Calculation data
Basic dynamic load rating C 35.1 kN
Basic static load rating C0 23.2 kN
Fatigue load limit Pu 0.98 kN
Limiting speed 3 300 r/min
Limiting speed with shaft tolerance h6
Mass bearing unit 2.15 kg
Mounting information
Set screw G2 M10x1.25
Hexagonal key size for set screw 5.08 mm
Recommended tightening torque for set screw 16.5 N·m
Recommended diameter for attachment bolts, mm G 16 mm
Recommended diameter for attachment bolts, inch G 0.625 in
Included products
Housing FL 210/Y
Bearing UC 210
