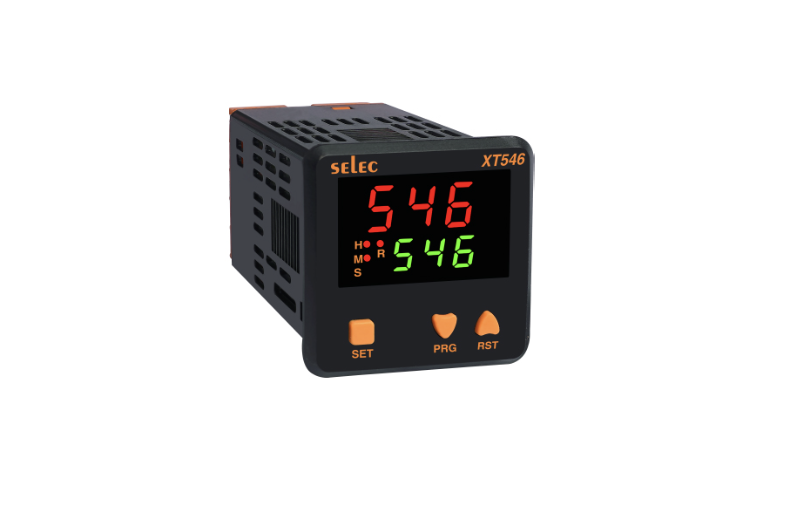

Selec XT546BX Dual Display Digital Timer
Selec XT546BX Dual Display Digital Timer
| Brand: Selec |
Selec
Selec Controls is a pioneer in the field of electronics research and development. We have inbuilt core competencies in the domains of manufacturing, design, tooling, and plastic manufacturing complying with global standards. Selec has unique innovative solutions with an unabating focus on customer-centric problems. We have expanded our capabilities to accommodate a wide range of products in the portfolio incorporating the finest quality and service. Selec has an exemplary thought mechanism, which is centered around empathy and courage in our approach to propose smart solutions to our customers. Currently, we are a leading Indian company in industrial Electronics dealing in – Automation (PLC and HMI), Process Control, Electrical measurements, and Protection and time relays. We are present globally with a wide network to support our customers at every step.
DUAL DISPLAY, 9 TIME RANGES, SHORTH DEPTH, 48 x 48 mm
3+3 digit, Single set point
LED indications - Relay ON, hr,min,sec
Relay modes - ON delay, Interval, Cyclic ON first, Cyclic OFF first
Multi range - 9 time ranges
Counting direction - Up/down selectable
Universal power supply
Rubber keys, Short depth
| Display Type | 7 Segment LED, Dual Display |
| Display Configuration | 3+3 Digits |
| Feature | Memory Retention |
| Relay Contact | 2 C/O SPDT |
| Range | 9.99 / 99.9 / 999sec, 9.59min sec, 99.9 / 999min, 9.59hr : min, 99.9 / 999 hr |
| Operating Modes | ON Delay / Interval / Cyclic ON First / Cyclic OFF First |
| Reset | Front, Remote, Power Interruption |
| Accuracy | ± 0.05% or 50 ms (Whichever Is Greater) |
| Counting Direction | Up / Down |
| Supply Voltage | 85 to 270V AC , 24V AC / DC |
| Size | 48 x 48mm |
| Mounting Type | Panel Mount |
